Planetary Ball Mill

Thús> PRODUCTS > Planetary Ball Mill

Industrial-Planetary-Ball-Mill-2
01 (1)
02 (1)
03 (1)
04 (1)
05 (1)
Folsleine rjochting Planetary Ball Mill QXQM 8L
Folsleine rjochting Planetary Ball Mill QXQM 8L
Folsleine rjochting Planetary Ball Mill QXQM 8L
Folsleine rjochting Planetary Ball Mill QXQM 8L
Folsleine rjochting Planetary Ball Mill QXQM 8L
Folsleine rjochting Planetary Ball Mill QXQM 8L

Folsleine rjochting Planetary Ball Mill QXQM 8L

Hits: 31

Oanfraach
Heavy-duty full-directional planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for lots of production fields such as electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass, etc. Production of Powder, Fuel Cell, Zinc Oxide Varistor, Piezoelectric Ceramics, Nanomaterials, Wafer Ceramic Capacitance, MLCC, Thermistor (PTC, NTC), ZnO Varistor, Dielectric Ceramics, Alumina Ceramics, Zirconia Ceramics, Phosphor Powder, Zinc Oxide Powder, Cobalt Oxide Powder, Ni-Zn Ferrite, Mn-Zn Ferrite, etc.

  • Video
  • Oersicht
  • Wurkprinsipe
  • Feature / foardielen
  • Data Sheet
  • Matchable Accessory

On basis of vertical planetary ball mill, the omnidirectional planetary ball mill adds the function of planetary disc overturning. While planetary disc and mill jars are doing planetary movement, they can also do 360 degree overturning in a stereo space to realize multi-directional and multi-dimensional movement of ball mill jars, and to improve degree of disordered movement of balls and materials. All material are ground inside the mill jars without dead angle, which makes grinding materials more uniform and finer. This kind of ball mill solves common issues such as sinking to the jar’s bottom and sticking to the jar’s wall.Heavy-duty full-directional planetary ball mill is designed for large batch production with sliding door based on laboratory type of full-directional planetary ball mill. This kind of machine can be matched with the support lifting and feeding devices which are adopted with integrated design. The feeding device incorporates the technology of vibrating screening and discharging for simple and convenient operation. It realizes easy and fast picking up, discharging and loading of mill jars, reduces labor intensity and improves production efficiency.

x-1

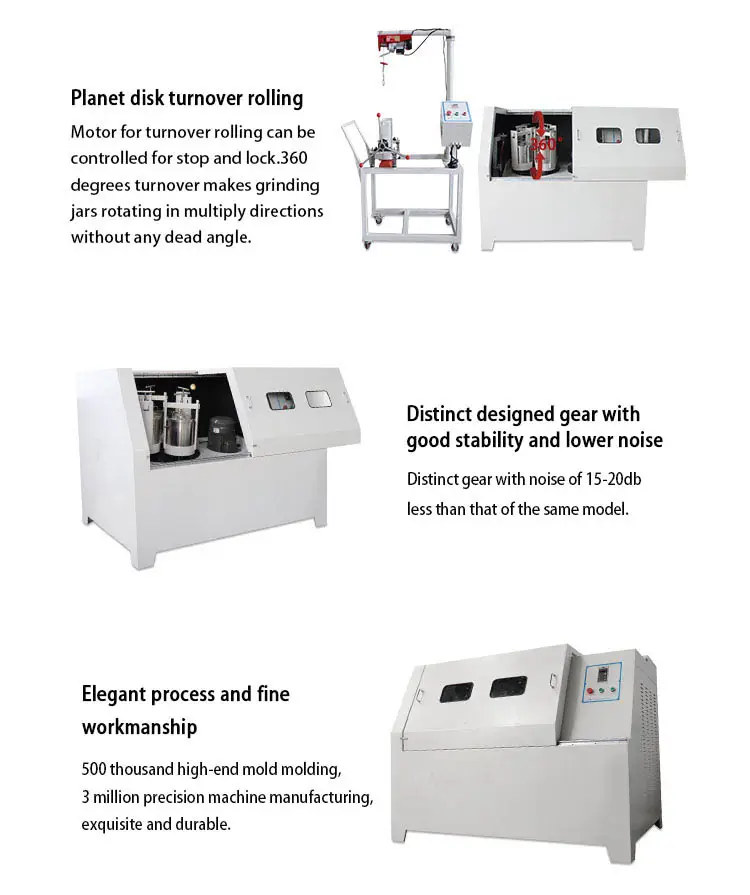

x-2

QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.QXQM series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

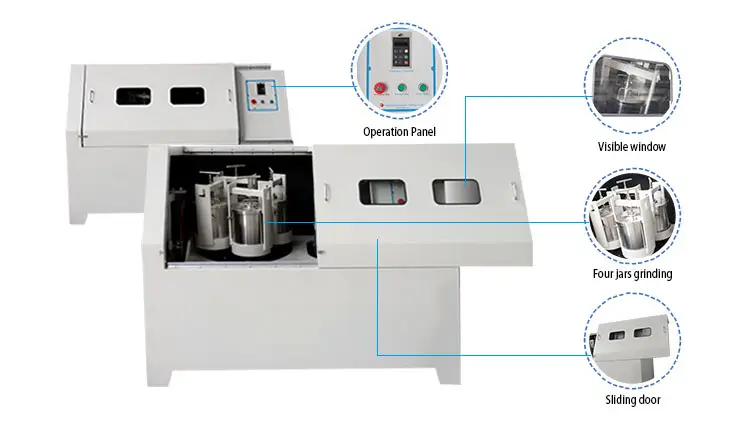

x-3

1. Stabile draaiende snelheid fan 'e geartransmission soarget foar de konsistinsje en werhelling fan it eksperimint.
2. Planetêre bewegingprinsipe wurdt oannommen yn 'e masine, dy't hege snelheid, grutte enerzjy, hege effisjinsje, lytse Granularity hat.
3. Fjouwer poederproblemen fan ferskillende dimensjes en ferskillende materialen kinne op ien kear produsearre wurde.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Feiligensskeakel is ynstalleare op 'e masine om feiligensûngelok te foarkommen as de feiligensdekking iepene wurdt wylst masine rint.
Professional out looking design and industrial modeling of the ball mill shell with lean manufacturing make machine exquisite and fine. CNC processing technology is adopted for making machine-added parts, and precision gears with special materials are selected for transmission gears to ensure smooth, safe and low noise operation of the ball mill at high speed. Overturning motor has function of brake locking, which can stop overturn at any angle, it is safe and reliable. Ball mill is easy to be operated due to touch screen of micro-computer as its interface is simple and intuitive. This kind of ball mill can realize forward and backward alternating control, and has functions of timing and power-off memory.

Table 3 Technical Parameters For Heavy-duty Full-directional Planetary Ball Mill res of Tencan Full-directional Planetary Ball Mill

Drive ModeFersnellingsdriuw
Operaasje ModeTwa of fjouwer mûne potten kinne brûkt wurde foar elke grinding
Max Kapasiteit foar MaterialenMinder dan 1/3 fan elk folume fan de pot
Totale maksimale kapasiteit: minder dan 1/3 fan it totale folume fan potten
FeedgrutteSêfte en knapperige materialen ≤ 10mm
Oare hurde materialen ≤ 3mm
Utfier GranularityDe lytste granulariteit kin berikt wurde oant 0.1μm
Rotation Speed ​​Ratio1: 02
Max Trochrinnende Operating Tiid72 Hours
Materialen fan beskikbere Mill Jars304 RVS, 316l RVS, Zirconia, Nylon, PU,
Alumina keramyk (korund), PTFE, Agaat, Wolframkarbid

Table 1 Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model nûmer.SpesifikaasjesMatchable maten
 fan Mill Jars
Matched QuantityMatchable maten
fan Vacuum Mill Jars
QXQM-2020L2L-5L4 pcs1L-4L
QXQM-4040L4L-10L4 pcs2L-5L

Table 2 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model nûmer.foltaazjeKrêftRotaasjenivoLûd
QXQM-20380V-50Hz4.0KW50-430 toerenMinder dan 65db
QXQM-40380V-50Hz5.5KW40-390 toerenMinder dan 65db

Table 3 Technical Parameters For Tencan Heavy-duty Full-directional Planetary Ball Mill

Model nûmer.Snelheidskontrôlenet GewichtNetto Ofmjittings
QXQM-20Frekwinsje kontrôle1150kgs1700 * 1210 * 1300mm
QXQM-40Frekwinsje kontrôle1400kgs1900 * 1450 * 1480mm


Applikaasje gefallen fan Planetary Ball Mill

x-5

Applikaasje gefallen fan Planetary Ball Mill

x-6
